Driling pipe screen

Views:65     Author:Jordan     Publish Time: 2018-11-20      Origin:Site

Drill Pipe Screens are an important part of the directional drilling tool string. They filter out large particles in the mud protecting the MWD tools below. The Drill Pipe Screens are made of 3/16” thick perforated stainless steel, with 17-4 hub and end cap heat treated to H900. This combination of materials has been field proven to outlast the competition in high wash environments. Our screens are available in every configuration to fit your specific requirements.


Specification of Well Drilling Pipe Screens

a. Material: 304 & 316 stainless
b. Perforation: 3/16” hole on 5/16” stagger
c. Retrievable with standard overshot
d. Interchangeable ring flanges
e. 33% open area perforation
f. Internal wear distribution sleeve
g. Full length safety retaining rod

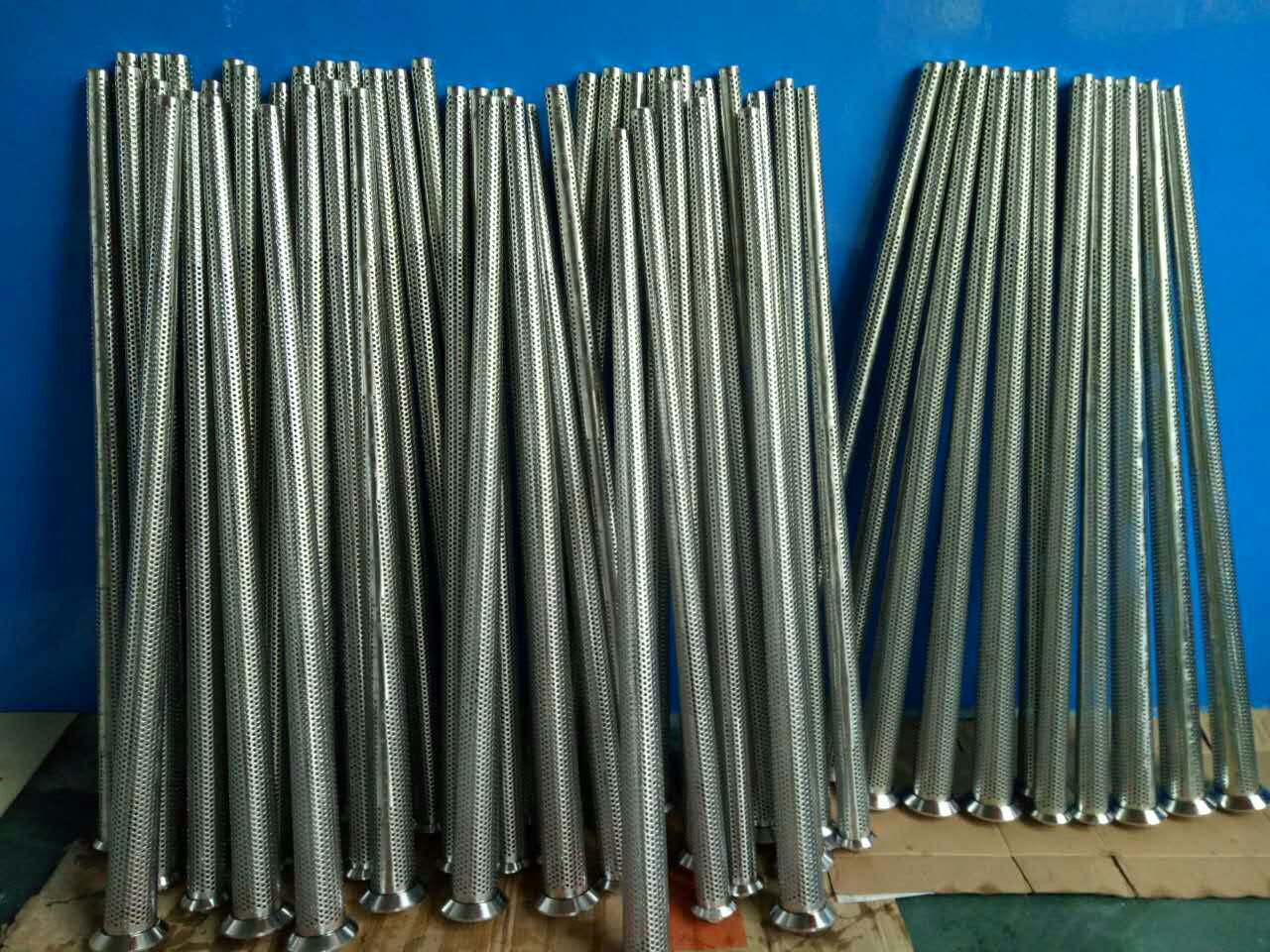

20170112113109
