Wedge wire screen consists of Surface Profile(Profile Wire/Wedge wire ) and supports Fin(Support Rod) welding. The distance between surface profiles is called slot and it filters impurities.
Wedge wire screen is being utilized in a wide variety of industrial area(Ground water development, Water treatment, Refining & Petrochemical, Pulp & Paper, Food & Beverage, Mining Industry, Architecture & Construction etc.)
It’s considered as optimal choice for substitution of existing metal mesh filers.We Huadong provide Cylindrical type of Wedge wire Screen products with a wide variety of slot sizes ranging from 0.05mm to 2mm and serves various stainless steels(304,304L,316,316L) to meet customer's needs.

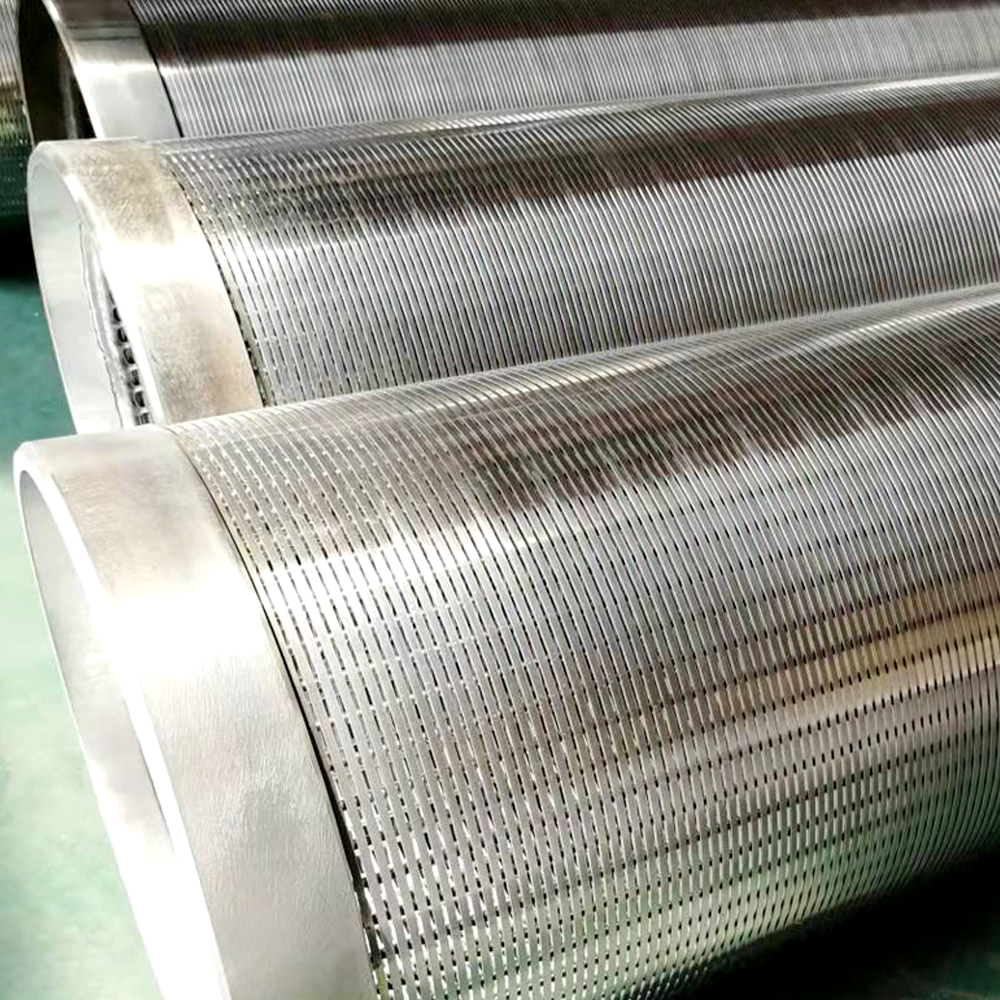

Welding ring end Johnson screen

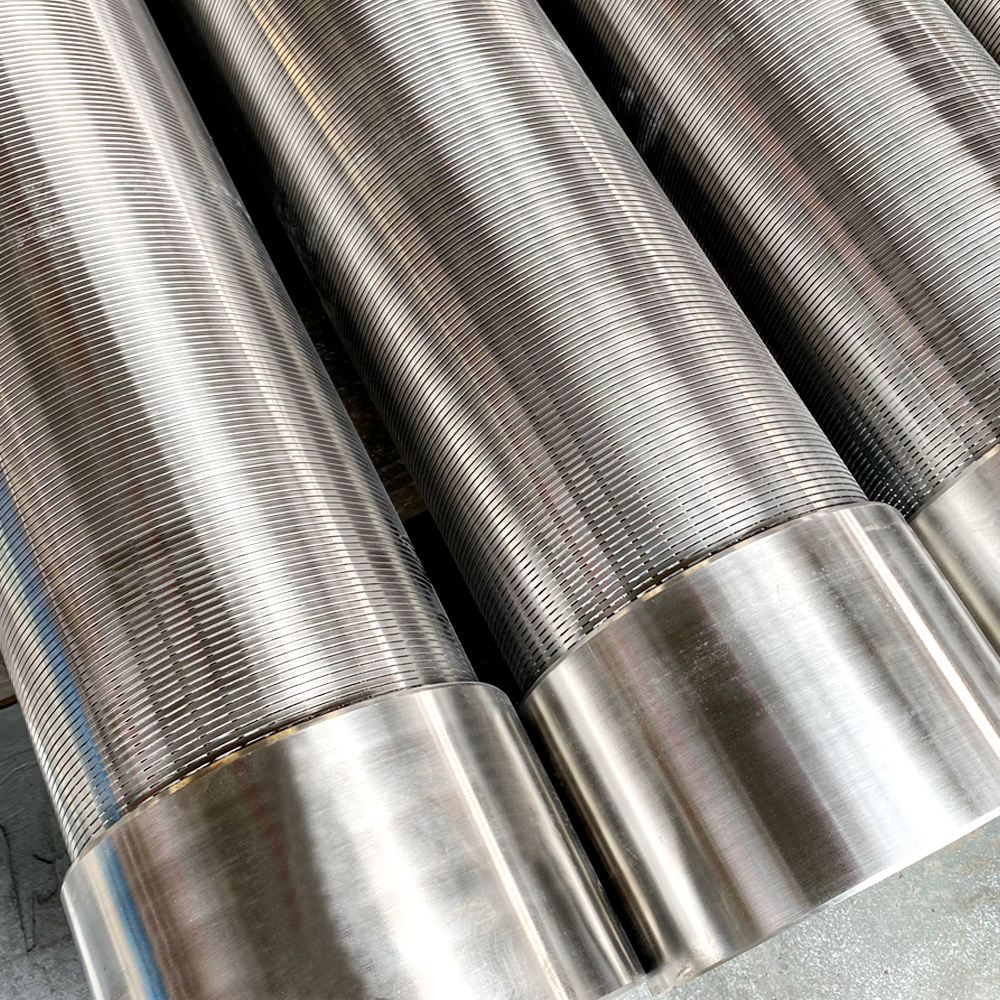

STC thread ends wedge wire screen
Wedge wire has the following advantages:
Non-clogging: the continuous slot formed by the V-shaped surface wires ensures a two-point contact between the particles and the slot, which minimizes clogging.
High-precision slot sizes: precise slot sizes are available to meet customer's requirements.
Surface filtration: the V-shaped surface wires allow easy cleaning by mechanical scraping or back flushing.
Strong construction: for most applications, the wedge wire screen is self-supporting, because of the welding at each intersection.
Specification (Profile wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30
Specification (support rods):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other wires and rods available upon request
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)
Lengths up to 6 meters.
ranging from 25mm to 800mm.

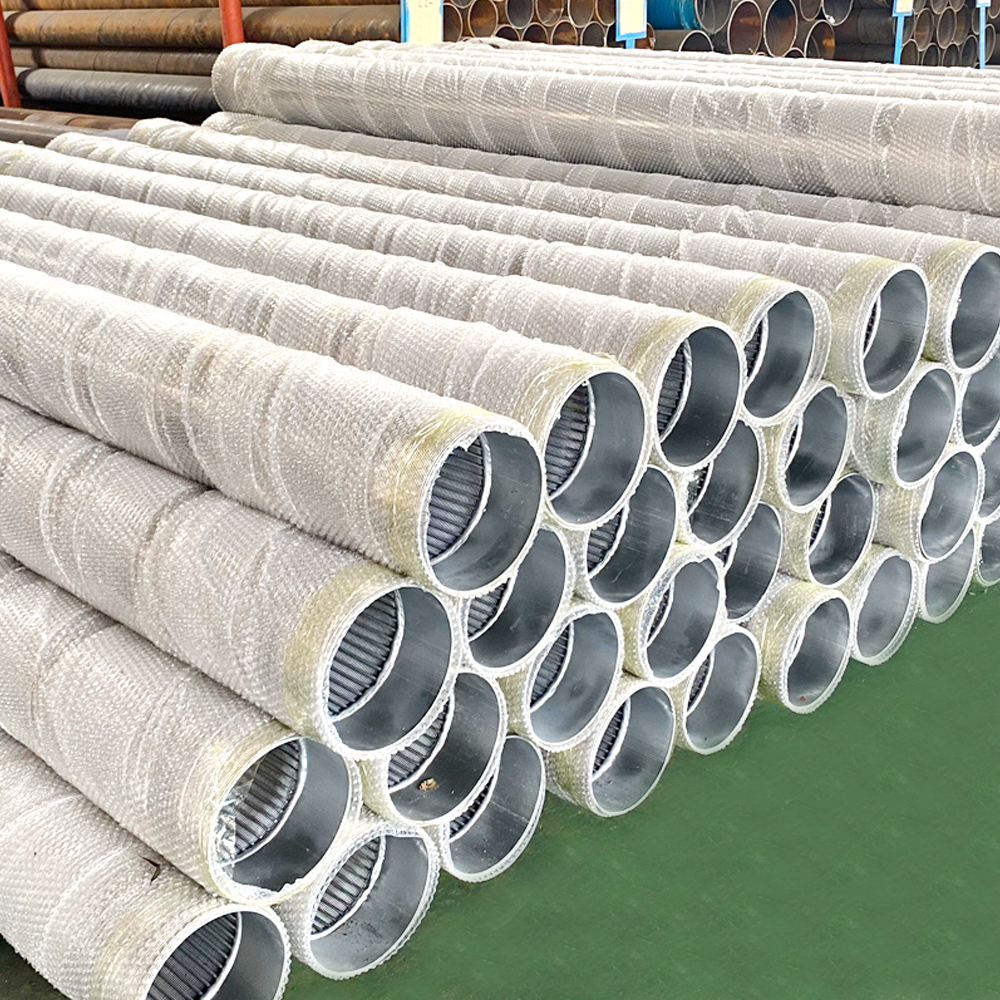

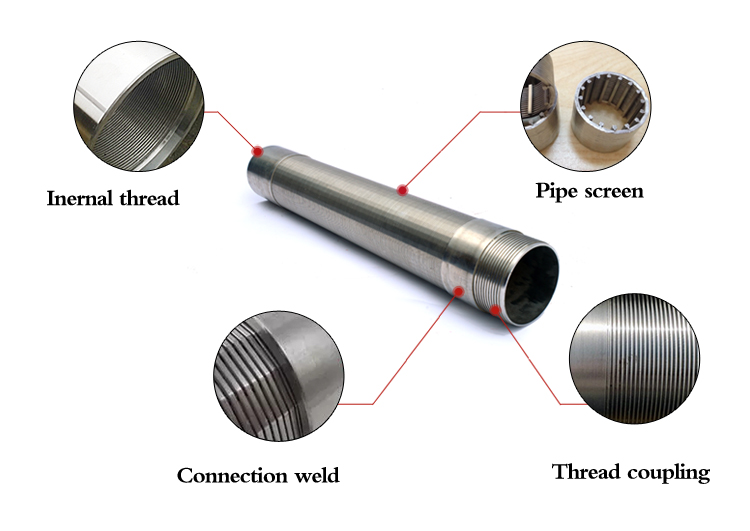

Plain beveled ends for butt welding or threaded
